Features:

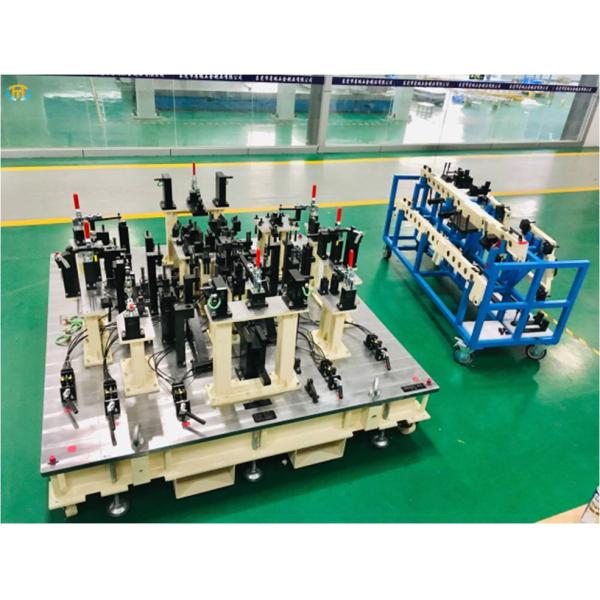

Welding Fixture of Automotive floor part for Assembly part or Frt Underbody
All checking fixtures can meet all GD&T per part print including gen. Tolerance callouts;
Using three 3 tooling balls if gauges are over 300mm at any axis;
Checking Slots of part with 2 pins (checking from width and length separately);
Installing safety lock or counter balance for all heavy swing details;
Painting non-working surface with blue and keeping the original color of metal for working surface;
Flush checking can be well accommodated to allow easy inspection of the part profile.
Auto Trunk Lid Final Fixture- Project JMC E315.pdf...
Specification
Size:2200*2100*1280
Weight: 2600 kg
Program: CX482/483
OEM:Ford
Export Country:USA
Year:2018
Size:2600*2315*1365
Weight: 3700 kg
Program: CX482/483
OEM:Ford
Export Country:USA
Year:2018
Fixture Type
ASSY Checking Fixture
Material
Base Plate and Body: Aluminum
Support: Aluminum
Color
Base Plate: Original Color of Mental
The Steel and Aluminum Parts: Original Color of Mental
Non-Working Surface: Blue
Manufacturing tolerance:
| Items |
| 1 | Base Material | Al |
| 2 | Application | Stamping Parts |
| 3 | Surface treatment | Oxidation/Paint |
| 4 | Processing Precision | 0.15 |
| 5 | Accuracy for Other Profiles | 0.1 |
| 6 | Accuracy for Datum Hole | ±0.05 |
| 7 | Certificate | ISO 9001:2008 |
| 8 | CMM certification | Yes |
| 9 | Software | Catia, UG, CAD, STP |
| 10 | Specification | 2800*2500*1600 mm |
| 11 | Packing | Wooden Box |
Process
CNC Machining(Milling/Turning), Grinding,Surface Treatment,CMM Inspection,Assembling
Design Hours(h):30h
Building Hours(h):100h
Quality Control
CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified
Lead time & Packing
60 days after 3D design approved
10 days via FedEx: FedEx by Air
Standard Export Wooden Case
